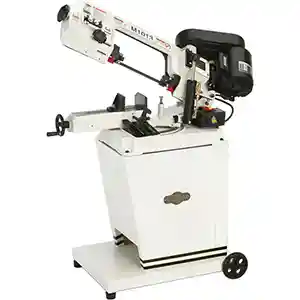

Shop Fox 5 Inch x 6 Inch Metal Cutting Bandsaw M1013

Details

• 1/2 HP, 110V/220V, Single-phase, 60 Hz, 1720 RPM
• Amps: 7 @ 110V, 3.5 @ 220V

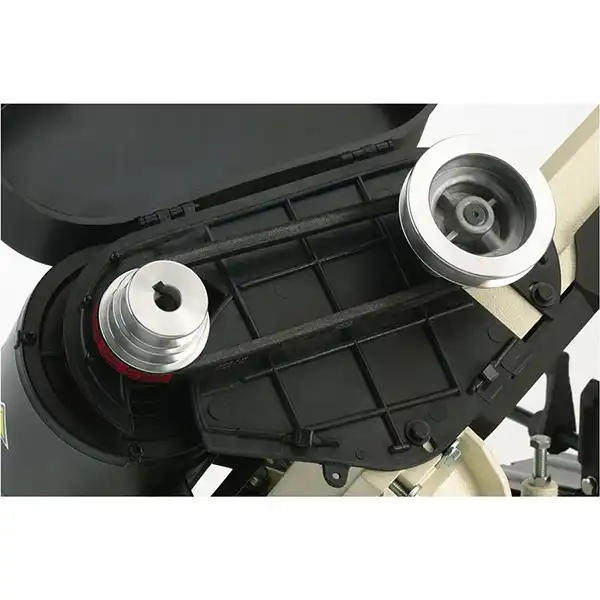

• Drive: V-belt
• Transmission: sealed worm gear
• Max. capacity rectangular @ 0°: 5" x 6"
• Max. capacity: Circular @ 0°: 5", Rectangular @ ±45°: 2-15/16" x 3-3/4", Circular @ ±45°: 3-3/4", Rectangular @ +60°: 1-3/4" x 2-3/16", Circular @ +60°: 1-3/4"
• Blade speeds: 80, 120, 200 FPM
• Overall height: horizontal 42-1/2"; vertical 54-3/4"
• Floor to table height: 29"
• Overall width: 23-3/8"
• Overall length: 39"
• Overall bed: 19-1/4" x 13-1/2" x 3"
• Footprint: 26-1/2" x 20-1/2"

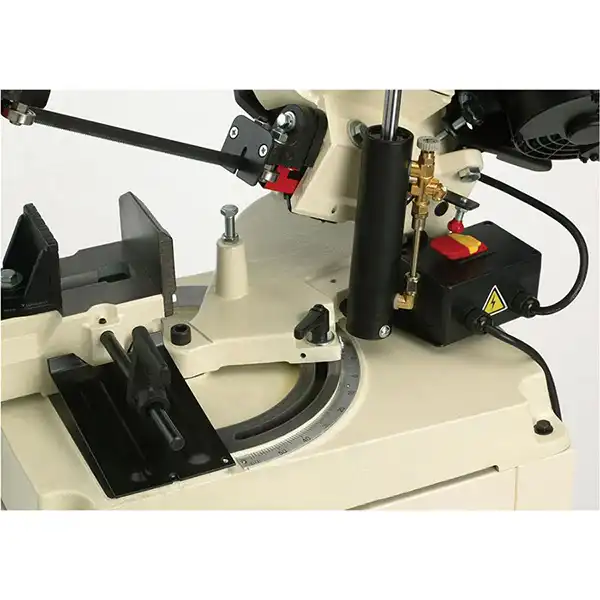

• Angular cuts: -45° to +60°

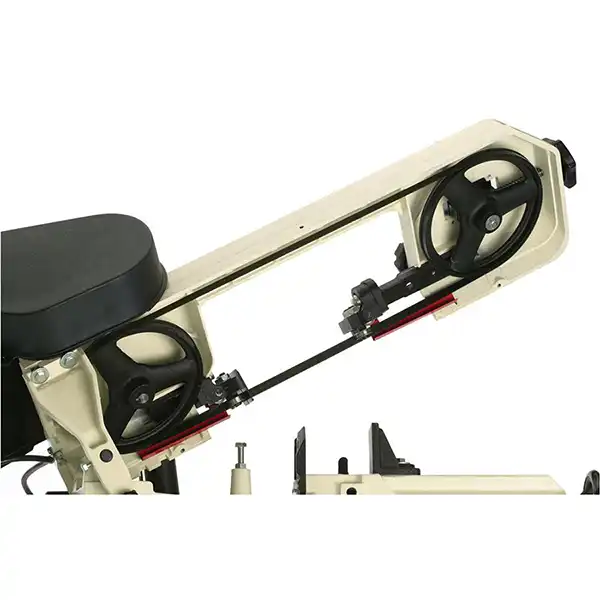

• Blade size: 64-1/2" x 1/2"

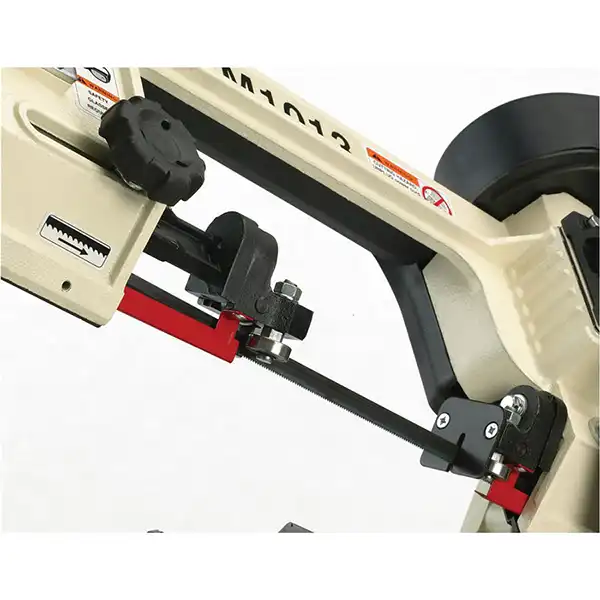

• Ball bearing drive wheel and blade guides
