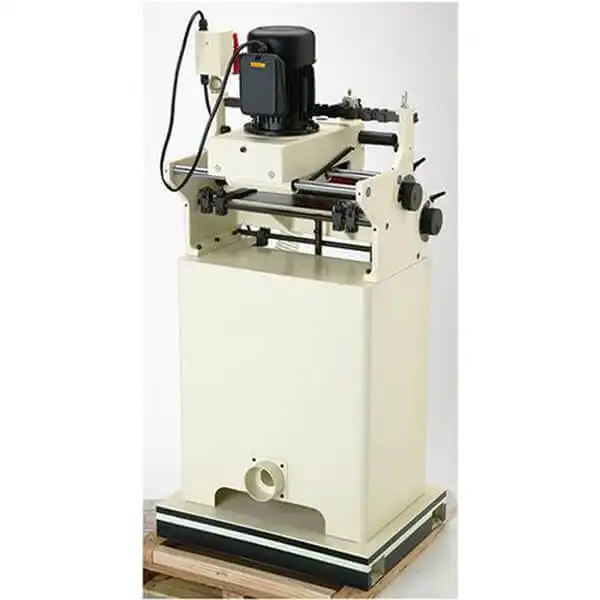

Shop Fox 11-1/4 Inch 1 HP Dovetail Machine W1804

Details

• Motor: 1 HP, 110V/220V,single-phase, prewired 110V
• Table size: 19-1/2" x 7"
• Floor to table height: 38-5/16"
• Overall size: 28" W x 23" D x 57" H
• Number of spindles: 1
• Spindle speed: 18,500 RPM

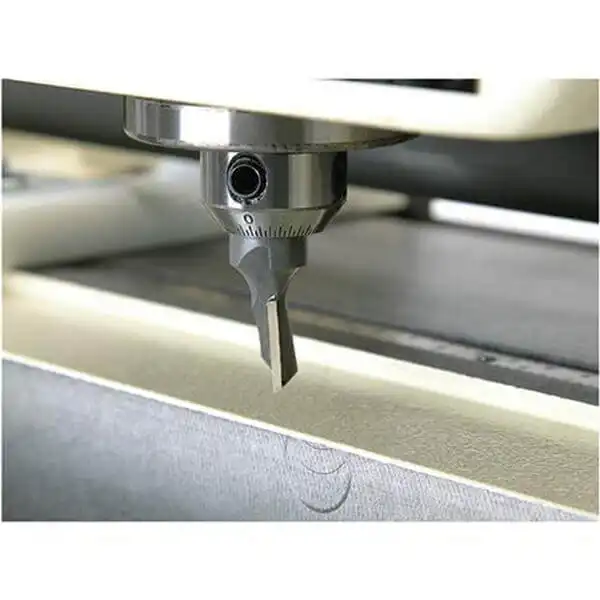

• Dovetail bit: 10° angle x 5/8" long
• Dovetail templates: 1", 1-1/2", 2"& 2-1/2"
• Dovetail shank: 12 mm
• Maximum dovetail height: 3/4"
• Minimum dovetail height: 3/16"
• Maximum thickness: 1-3/4"
• Minimum thickness: 13/32"
• Maximum stock size: 11-1/4" W x 28" L
• Minimum stock size: 2-3/8" W x 7-7/8" L
• 4" and 2-1/2" dust ports
• Precision milled cast iron table frame
• Cast aluminum carriage
• Steel stand
• Hardened and ground chrome steel slide ways
• Ball bearing linear guides
• Four sided dovetail template bar

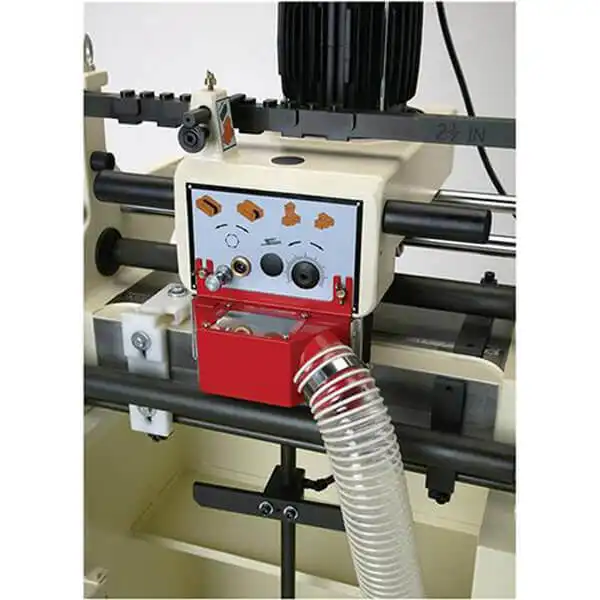

• Micro adjustable spindle head
• Work piece stops
• Quick cam clamp
• Spring loaded carriage for smooth operation
• On/Off push button switch with oversized stop paddle
• 2 cam-lock bar clamps
